Base Unit Price: $209,061.45
Base Unit Price:
$209,061.45
Equipment prices are subject to change based on dealer location, availability, and any additional features or customizations. For the most accurate and up-to-date pricing, please contact your local dealer. Prices do not include taxes, shipping, or installation fees, which may apply depending on your region.
12 MONTHS / 1000 HOURS WARRANTY
Whichever is earlier

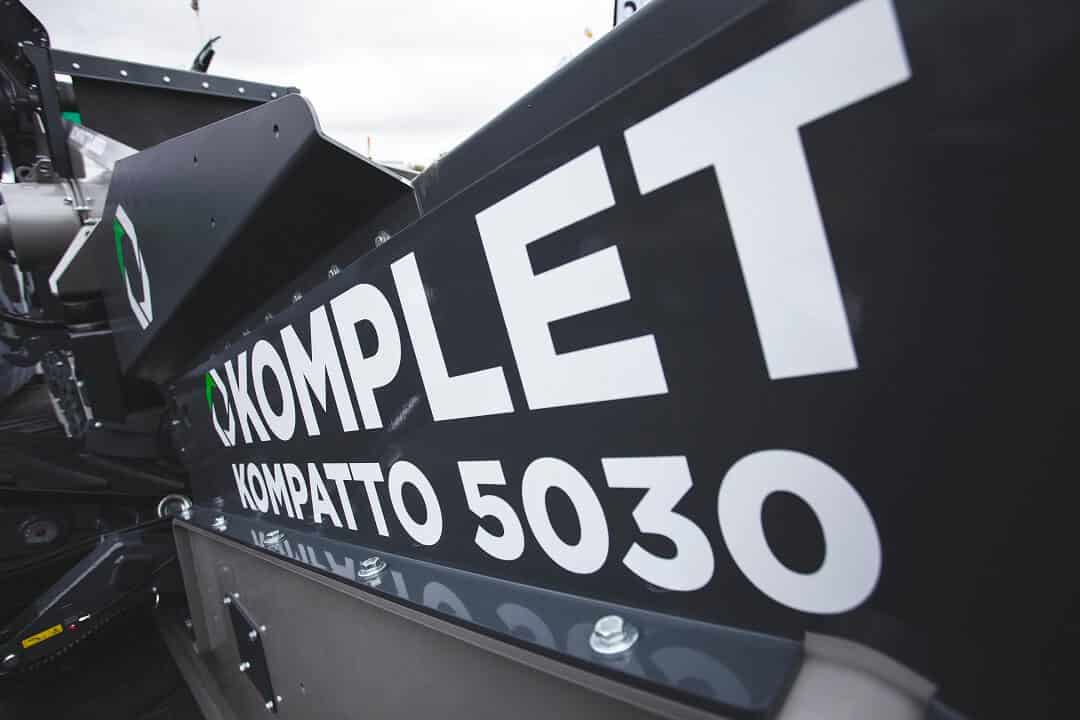

Kompatto 5030 Mobile Screener
- Engine Type
- Screen Size
- Production
- Weight
45 HP Diesel Engine
8′ x 3′
Up to 280 TPH
26,455 lb
ENGINE TYPE 45 HP Diesel Engine
SCREEN SIZE 8′ x 3′
PRODUCTION Up to 280 TPH
WEIGHT 26,455 lb

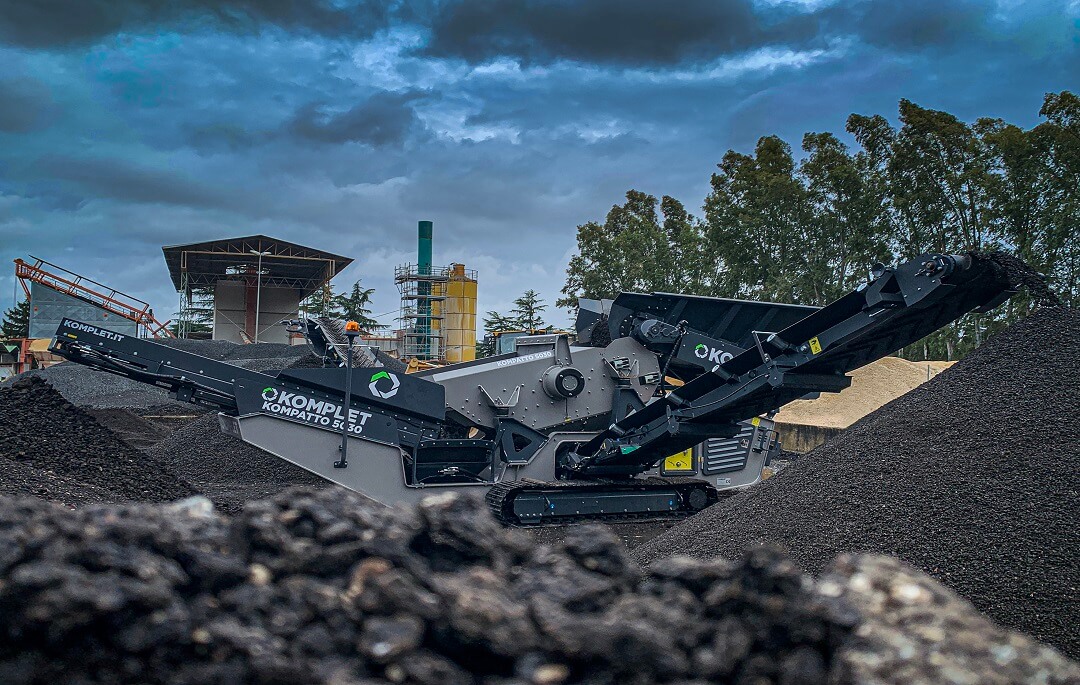

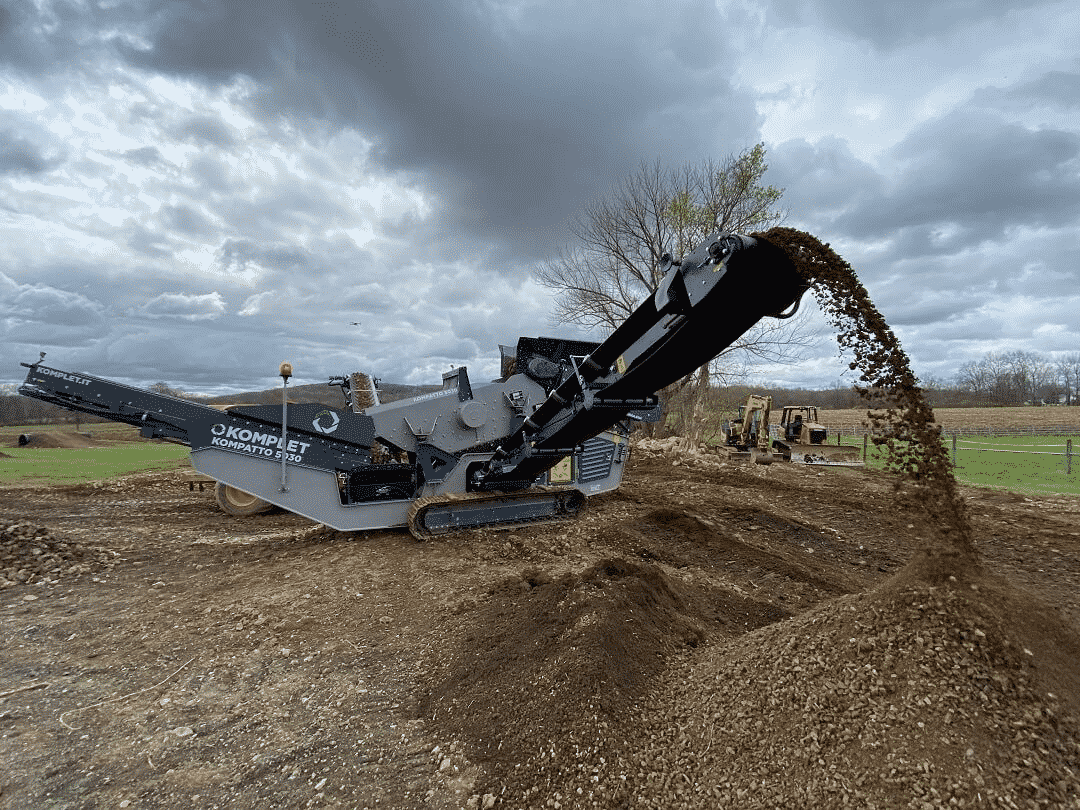

Kompatto 5030 Overview
The Komplet Kompatto 5030 is a compact, self-propelled mobile screener designed for high-volume screening with maximum versatility. Ideal for job sites, small quarries, demolition projects, and waste applications, the Kompatto 5030 combines optimal size and weight with powerful screening performance.

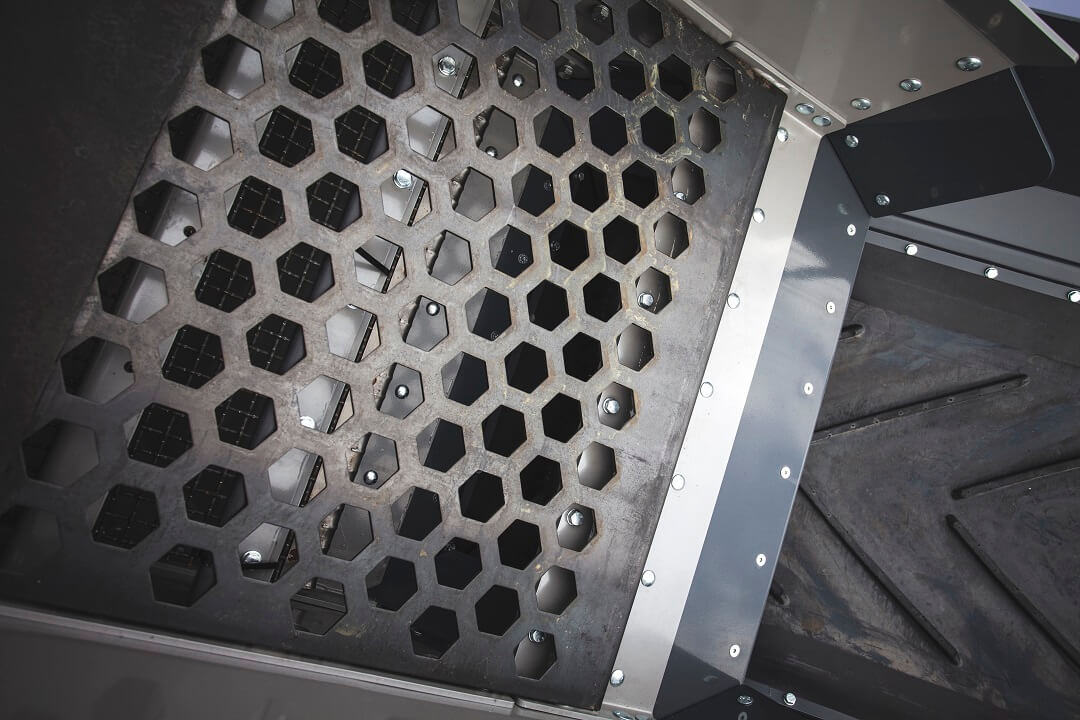

Its heavy-duty sloping double-deck screen box supports a wide range of screening media, including steel mesh, punch plates, and reinforced bars, allowing operators to screen sand, gravel, aggregates, C&D material, landfill waste, and topsoil. The 3-way split configuration delivers precise material separation, while its ability to function as a standalone screener or a pre-screen for crushing operations adds flexibility. Built for demanding daily workloads, the Kompatto 5030 offers excellent maneuverability, transportability, and consistent results—making it a reliable sorting solution for high-output screening applications.
PROPERTIES
GENERAL SPECS
GENERAL SPECS
Engine Type
Tier 4 Final Diesel
Engine Horsepower
45 hp
Screen Size
8′ ✕ 3’1″
Working Size (L ✕ W ✕ H)
30’8″ ✕ 35′ ✕ 9’2″
Transport Size (L ✕ W ✕ H)
31’5″ ✕ 7’2″ ✕ 8’2″
Weight
26,455 lb
FEATURES
FEATURES
Heavy duty single shaft incline screenbox
with adjustable stroke & speed
with adjustable stroke & speed
Fast conversion from 3-way split to 2-way
split fully hydraulic for optionally mixing
oversize and midsize product
split fully hydraulic for optionally mixing
oversize and midsize product
Hydraulically folding conveyors
Variable feeder speed
Versatile screenbox from the operation of
scalping before and screening after the
operation of crushing
scalping before and screening after the
operation of crushing

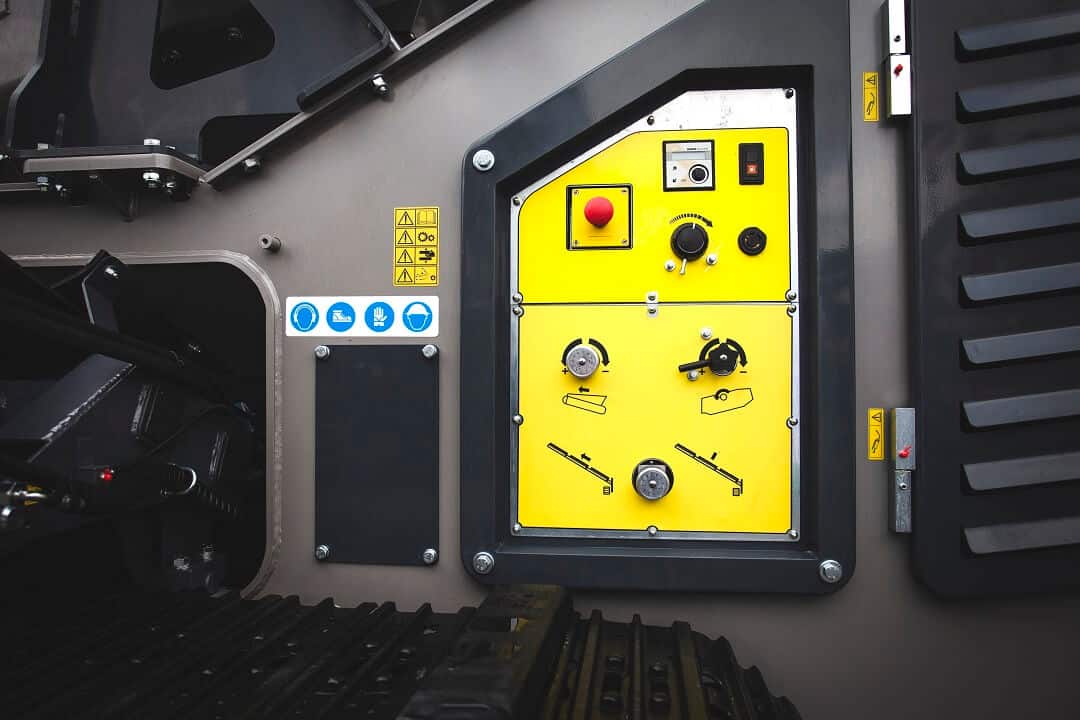

Easy & intuitive buttons operations
Wireless remote control
Quick set-up time
Why Choose Komplet America?
Buy direct - We ARE KOMPLET
As the official Komplet distributor, we forecast equipment and parts a year in advance to have in stock what you need when you need it.
KOMPLET CERTIFIED TECHNICIANS Network
Our team has Komplet-certified equipment training and has setup a service provider network throughout the USA to service and repair your equipment when needed.
Expert advice from Komplet specialists
Our Komplet equipment experts help you select the right equipment, and help you learn how to get the most out of your setup.
financing THAT IS FLEXIBLE
Connect with our in-house financing team at Komplet Capital to get the best rate possible or work with your own bank.
IMAGES
VIDEOS
Komplet America is the official distributor of Komplet high-performance crushing, screening, and shredding equipment throughout North and Central America. We maintain a large in-stock inventory of Komplet crushers, screeners, and shredders, supported by industry-leading service and support. To minimize downtime, we stock all wear parts along with a wide range of specialty components for every model. Our experienced, knowledgeable team is committed to delivering innovative, efficient on-site recycling solutions you can rely on.
Komplet America is the official distributor of Komplet high-performance crushing, screening, and shredding equipment throughout North and Central America. We maintain a large in-stock inventory of Komplet crushers, screeners, and shredders, supported by industry-leading service and support. To minimize downtime, we stock all wear parts along with a wide range of specialty components for every model. Our experienced, knowledgeable team is committed to delivering innovative, efficient on-site recycling solutions you can rely on.
WE STAND BEHIND OUR PRODUCTS
QUALITY EQUIPMENT
100% KOMPLET BACKED PRODUCTS & PARTS
FULL PARTS SUPPORT
LARGE KOMPLET PARTS INVENTORY
RELIABLE SERVICE
CLEAR, FAST, AND FRIENDLY COMMUNICATION
Coming up to my 1 yr anniversary since purchasing the K-JC704 machine and it’s been nothing but great! Customer service has been amazing since the start and very helpful when things pop up!
Cody and his team have been so helpful to us. We didn’t know much about crushers going into this new venture but Komplet has been behind us every step of the way. They’ve offered great support and were on hand every time we needed them with prompt and courteous service. Through the pandemic and supply chain problems they came through for us with great parts availability as well. I’m very grateful to have them behind us.
I have a Komplet 5030 screener and a Komplet 7040 mobile crusher that I purchased as demo units. The 5030 scalper type screener allows me to screen soils as well as aggregates. The 7040 allows me to add recycled concrete to my list of services that I have by going green and recycling busted slabs instead of burying at a landfill. These machines have been reliable and the parts and support that I receive from the distributor has been very good. Being able to diversify and add services in unstable times is key to being successful and having a good supporting distributor is a must.
Cody and Joe have been great since day one in our search for a crusher that met our needs. They are always available to answer any questions and help us with any of our needs during the purchase process and after the sale as well. We were looking for a crusher that was portable enough for us to move on our own and be able to crush concrete from our disposal and demolition waste business with an output material that was useable without adding a screener. It has done exactly what we wanted it to do by keeping the concrete waste out of the landfill which saves us money and now it’s putting money back into our pockets by selling the aggregate.
I purchased my Komplet jaw crusher 2 years ago. Recycling concrete and crushing rock has helped cut down on my import and export costs. I have had very few problems with my crusher. Cody and the entire Komplet team has been terrific with parts and any questions I have. I would highly recommend Komplet products.
I purchased this compact crusher in hopes to use it on many small concrete removal jobs and to aid in the services I provide. It has been a huge asset to be able to recycle concrete both on job sites and at the yard. While local concrete recycling facilities have grown highly restrictive on the products they accept, having a portable unit allows me to worry a lot less on what material I am able to remove from jobsites and stretch my productive hours past the time those dumpsites close. As for sales and product support, the team has been very helpful anytime I have had any issues and would recommend them for anyone looking for equipment.
While I haven’t contacted Komplet since the one time I had to service a machine, the one experience I had can speak for itself. The tech support was absolutely on point. I was able to get what I needed and very fast. If I remember correctly (it’s been a couple of years) I was contacted shortly after the initial call to them to make sure I was taken care of.
We are primarily using the LT4825 to crush waste concrete into crush for putting on the city streets and alleys that are gravel. It is a good machine. We probably could have went bigger but this unit fit into our price range better.
Great company to deal with Cody is on his A game with customer service always a pleasure to do business with. Thank you guys.
Purchased SC221 screener to helps us produce usable products from our small rock crusher. The SC221 keeps up great with our crusher to produce 2 sizes of gravel and Item #4 base material. Amazing machine. Sales staff was great, service was responsive and helpful.
We got one of the small jaw crushers for a large building that we were demolishing it was all block and brick we ran this machine steady for about a month, and we were so surprised by the pile of stone we were able to save and use for a parking lot it saved us dump fees and we were able to save on buying material for the stone parking lot. My only regrets are that we did not get the larger machine to take on larger projects. I would buy a larger machine next time. This has been a hassle-free crusher.
KOMPLET CAPITAL FINANCIAL SOLUTIONS
At Komplet America, simply selling you the right crushing and screening equipment is Never Enough. That’s why our team of finance specialists at Komplet Capital is here to help you get the most out of your investment.
KOMPLET CAPITAL FINANCIAL SOLUTIONS
At Komplet America, simply selling you the right crushing and screening equipment is Never Enough. That’s why our team of finance specialists at Komplet Capital is here to help you get the most out of your investment.
How much material can the Kompatto 5030 screen per hour?
The Kompatto 5030 mobile screener will produce up to 280 tons per hour depending on the type of material being processed. This double-deck screen has three extraction belts creating three different end-product material sizes. If needed this compact screener can also be set up with a 2-way split to produce two end-products.
What does “up to tons per hour” really mean?
The “up to” production rating refers to the maximum potential output a machine can achieve under ideal conditions—this includes consistent feed material (size, hardness, and moisture), skilled operator use, proper setup, and minimal downtime. For example, clean concrete with no rebar, fed at a steady rate in optimal weather, will produce higher output than mixed, wet, or irregular materials. Every job site is different, which is why we emphasize that this is not a guaranteed or average output, but a best-case scenario metric. If you’re unsure what output to expect for your application, we’re always happy to review your material and help you model realistic results.
What size can the Kompatto 5030 screen down to?
The Kompatto 5030 mobile screener has the ability to process any material up to the width of its screen deck (roughly 4′). Although dropping material of this size onto the screens will damage them, so we advise keeping the maximum material going into this screener below 15″. Then, the double-deck screen can be set up to output a range of material sizes from fine topsoil at 1/4″ to 5″ oversize. Our team is happy to speak with you about your application and needs to determine the correct screen deck set up for this machine.
What type and size of materials can the Kompatto 5030 process?
The Kompatto 5030 is a great solution for intense daily screening activities and can function both as a tilted screen featuring two meshes for three selections, or as a pre-screening machine to be used on the crushing operation’s output. The double-deck screen box is 8′ x 3′ and has the ability to convert from 3 to 2-way split processing materials from topsoil to construction and demolition waste. In addition, this mobile screener can process damp or sticky materials such as compost, however, operates best with dry materials.
